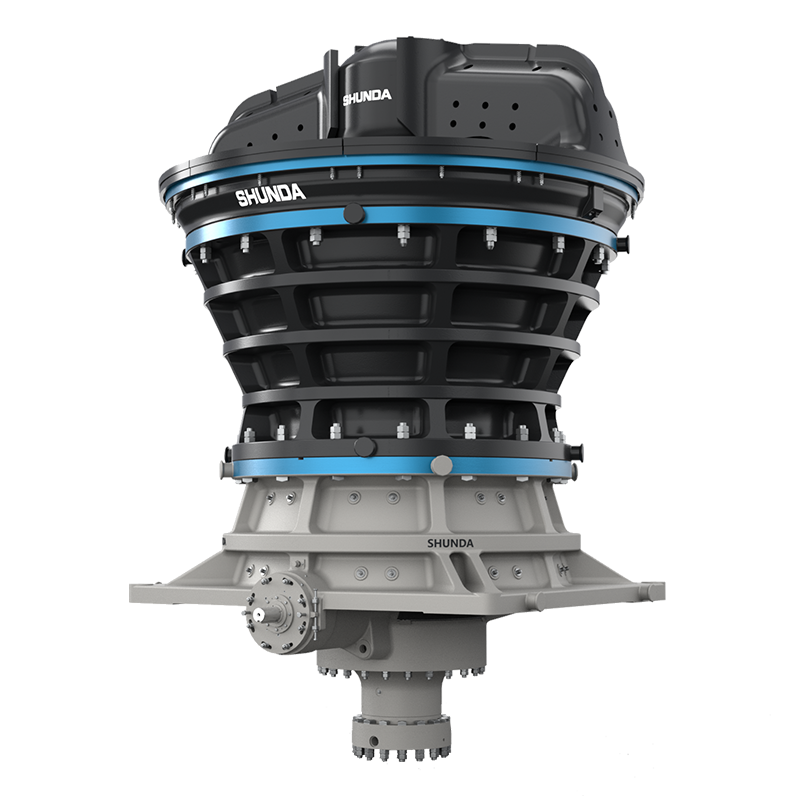

SDG Series Hydraulic Gyratory Crusher

Introduction of SDG Series Hydraulic Gyratory Crusher

It is suitable for crushing all kinds of ores and rocks of hard, medium hardness. The equipment adopts hydraulic drive mechanism, which could adjust the size of discharge opening quickly, and convenient to adjust the crushing circuit to achieve balanced production, which wil make crusher production achieve the best efficiency.

Advantages of SDG Series Hydraulic Gyratory Crusher

• Low wear on liner

• Strong production capacity

• Small wear on broken walls

• High operation rate

Note: The above capacity is based on the following assumptions: 10% of the feed passes 80% of the feed opening, 80% of the feed passes 60% of the feed opening, and 50% passes a sieve size that is 10% of the topsize. The capacities are for feed materials with a bulk density of 1.6 metric tons per cubic meter.

All capacity values are calculated at the maximum eccentricity of each device, and all capacities are subject to different applications. Factors to consider when determining total crushing capacity include: material characteristics, feed particle size, material distribution, work index, water content and feeding method. Please consult Shunda engineers to determine your processing capacity requirements.

*The gray table is the processing capacity of coarse cavity liner. The product particle size distribution is coarser using this cavity type, compared with the standard cavity type.

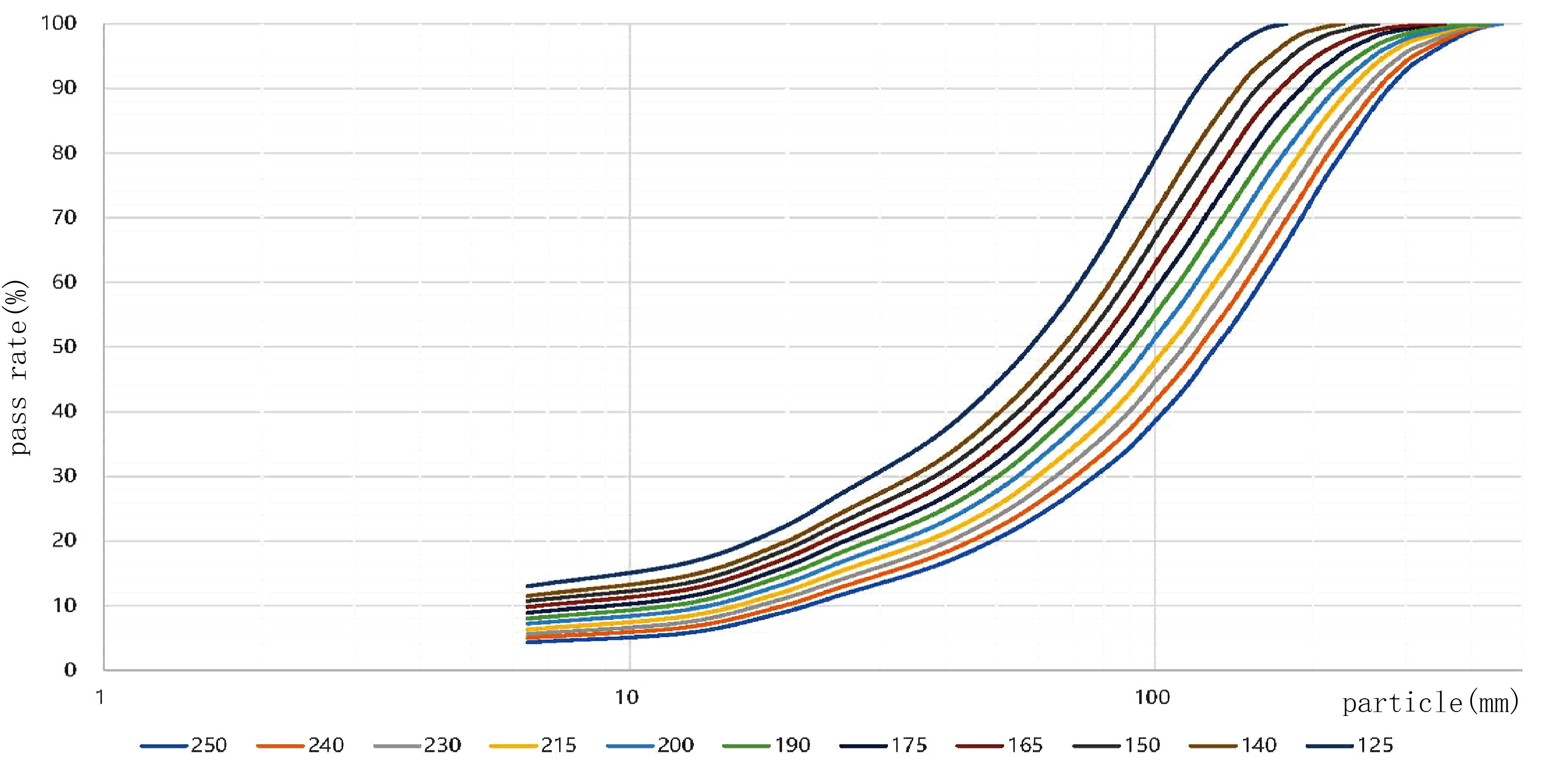

The particle size curve can be used as a tool for preliminary selection of SDG series gyratory crusher. The data in the table is suitable for medium-hard ore, hardness of 10-15, loose density of 1.6t/m', 100% passes 80% of the feed opening, 80% passes 60% and 50% passes a sieve size that is 10% of the topsize, open-circuit operation conditions of particle size distribution.

If the feeding condition changes, or the ore is easier (more difficult) to crush, the product particle size changes accordingly. For detailed particle size distribution, please consult our engineer.

The following factors can increase the production capacity and performance of the crusher

1. Appropriate proportion of feed particle size.

2. The proper selection of eccentricity.

3. Operate with full cavity capacity.

4. Evenly feeding on both side.

5. Automatic control.

6. Optimization on cavity shape.

The following factors will reduce the production capacity and performance of the crusher

1. Feeding cohesive material in the crusher.

2. Water content of the feeding material is too much.

3. The improper selection of eccentricity.

4. Operate without full cavity capacity.

5. Single sided feeding or feed segregation.

6. Feed is too hard or tenacious.

7.Crusher operating under the recommended speed.
